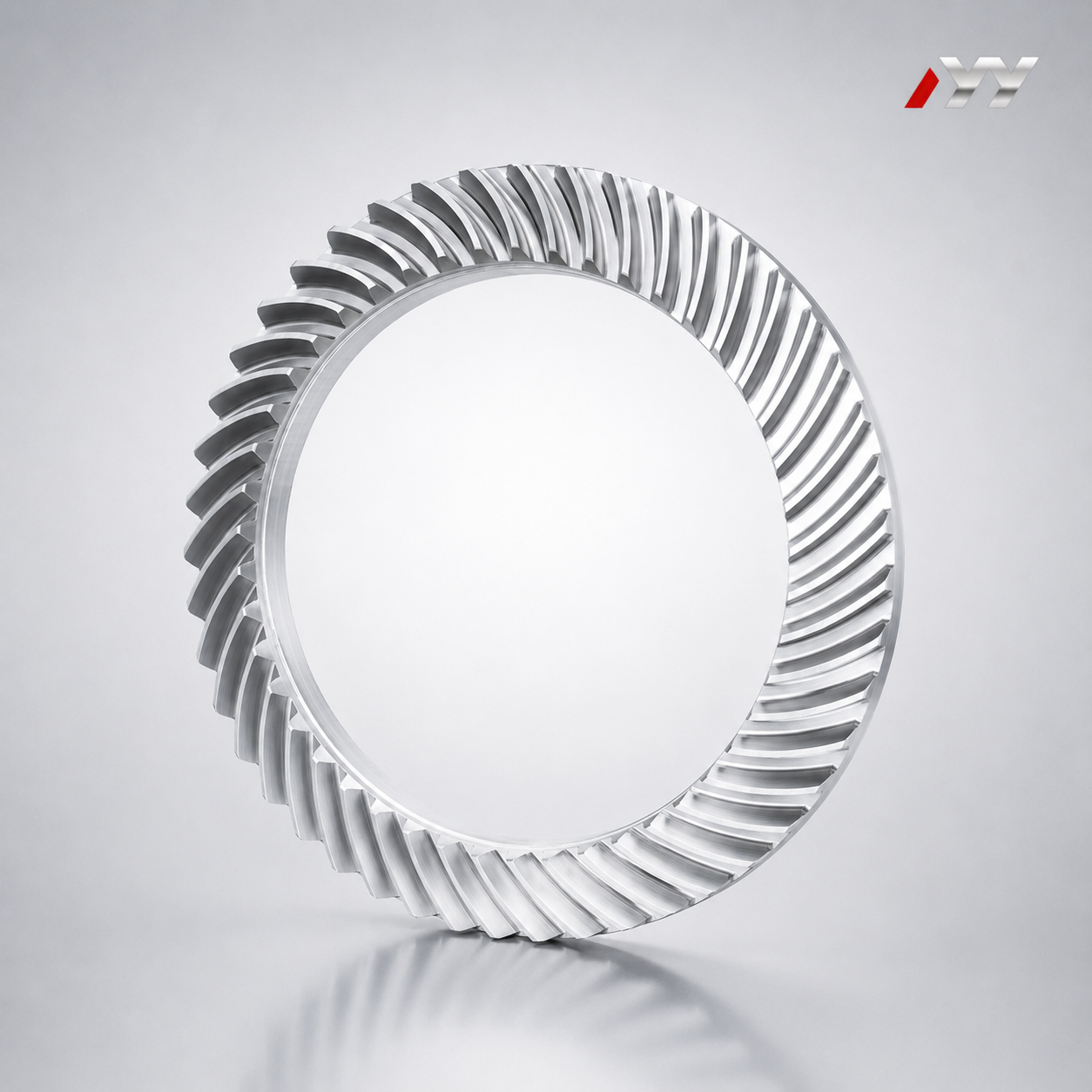

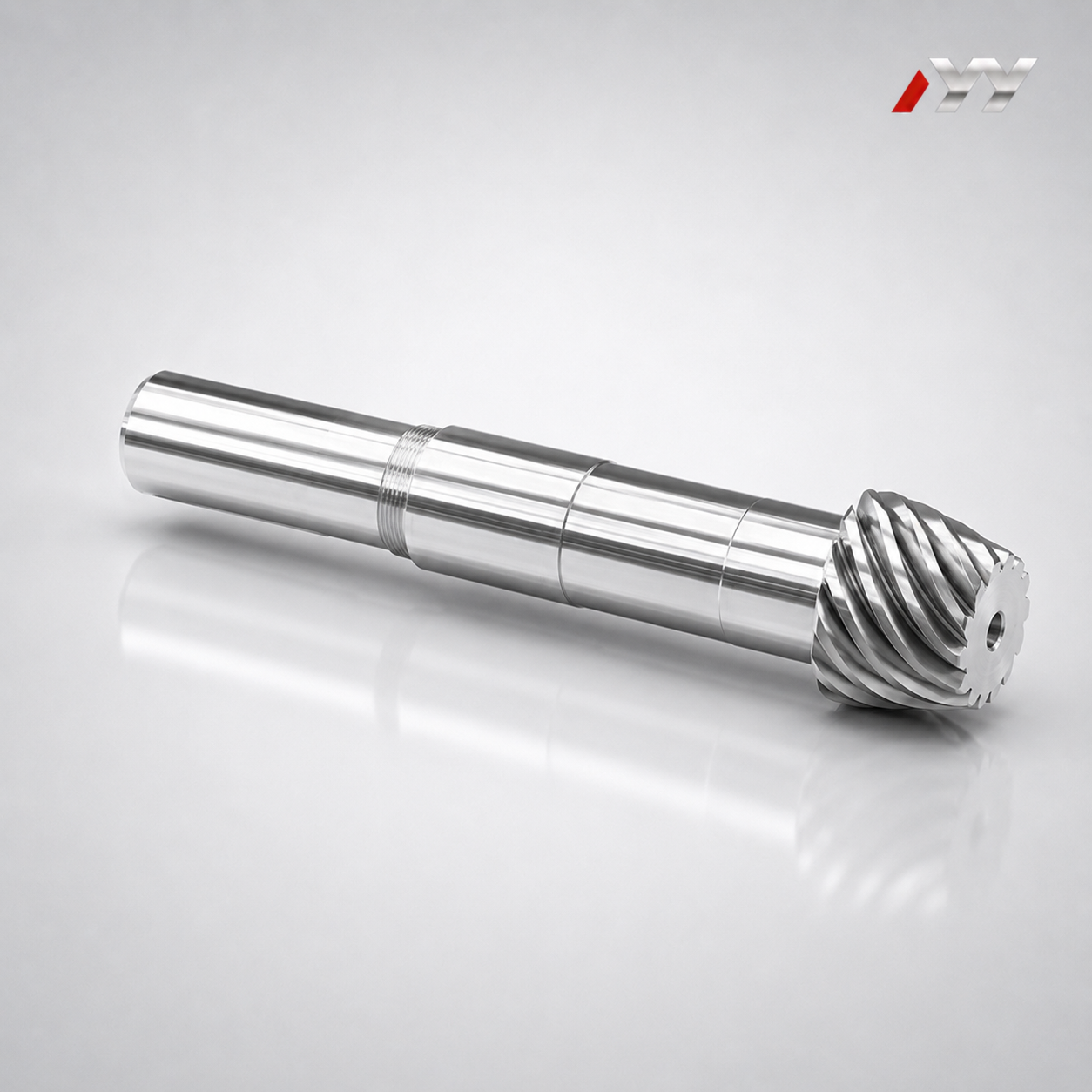

| Params | Product Types: Custom spiral bevel gears, straight bevel gears, matched bevel gear sets, bevel pinions, bevel gear shafts, and bevel pinion shafts
Manufacturing Mode: Build-to-print manufacturing based on customer drawings, technical specifications, and quality requirements
Available Materials: 20MnCr5, 18CrNiMo7-6, 17CrNiMo6, 18Cr2Ni4WA, 42CrMo, 35CrMo, 40Cr, alloy steel, forged steel, and other customer-specified materials
Heat Treatment: Carburizing and quenching, nitriding, induction hardening, or through hard, orening according to customer drawings and technical requirements. Outsourced special processes, related documents, and final quality results are managed and verified according to project requirements
Tooth Geometry: Spiral bevel or straight bevel tooth geometry manufactured according to customer drawings
Typical Pressure Angle: 20°, with other pressure angles and tooth geometries available according to customer drawings
Customization: Module or diametral pitch, tooth count, pressure angle, spiral angle, shaft dimensions, bore, mounting structure, material, heat treatment, hardness, surface treatment, accuracy grade, and inspection requirements
Gear Accuracy: Typical publicly listed accuracy levels include DIN 3962 Class 6–7 and AGMA Class 9–10. For applicable products, accuracy can reach DIN 5, AGMA 12, or higher, subject to product size, structure, material, heat treatment, and process review
Manufacturing Capabilities: CNC gear cutting, five-axis machining, precision gear grinding, turn-mill machining, precision finishing, and customized shaft machining
Inspection Capabilities: Tooth geometry inspection, dimensional inspection, radial runout, surface roughness, material composition, hardness, mechanical properties, ultrasonic testing, phased-array ultrasonic testing, grinding-burn inspection, rolling contact inspection, and contact-pattern verification
Quality Documents: Material certificates, dimensional inspection records, gear accuracy reports, hardness records, non-destructive testing documents, outsourced special-process records, rolling inspection records, and final inspection reports can be provided according to customer drawings, technical agreements, and project requirements
Order Type: Suitable for non-standard, medium- and small-batch, long-term supply, capacity outsourcing, localization, and second-source projects
Max machining dimension: ≤1300mm
Machining accuracy: Above DIN Class 5 | Material | Alloy steel, forged steel, 20MnCr5, 18CrNiMo7-6, 17CrNiMo6, 18Cr2Ni4WA, 42CrMo, 35CrMo, 40Cr, or other customer-specified materials |
