NYY
High Precision Industrial Drive Gears, spiral bevel gear
- Founded
- 1993
- Headquarters
- Name: Jane Huang Email: jane@wxyinye.com Tel: +86 15052211619 Address: No. 5 Lianghong Road, Shuofang, Xinwu District, Wuxi, Jiangsu, China
- Factory Area
- 25308㎡
- Employees
- 120
- Export Ratio
- 30%
- jane@wxyinye.com
- Website
- www.wxnyy.com
- Blog
- blog.wxnyy.com
About Us
Founded in 1993 and located in Wuxi, Jiangsu Province, China, NYY is a recognized National "Little Giant" High-Tech Enterprise. The company specializes in the R&D, manufacturing, and heat treatment ofhigh-precision cylindrical gears and spiral bevel gears. [Core Manufacturing Capabilities & Data] Max Machining Capacity: Cylindrical gears up to 3000mm in outer diameter; spiral bevel gears up to1250mm. Highest Precision: Reaches German standard DIN 3962/3965 Class 4 to 5, with surface roughness Ra 0.4. Machining Equipment Matrix: Equipped with German Hoefler RAPID/HELIX profile gear grindingmachines, Liebherr LCS 1200, and Japanese O-M vertical turning/milling centers. Bevel Gear Systems: Fully compatible with and capable of processing Klingelnberg, Gleason, and Oerlikon bevel gear systems. [Materials & Special Processes] Common Steels: Proficient in processing special alloy steels such as 17CrNiMo6, 18CrNiMo7-6, 42CrMoA,and 20CrNi2Mo. Heat Treatment: In-house capabilities include carburizing and quenching, high-frequency inductionhardening, and nitriding. Masters core technologies for deformation control of thin-walled parts post-carburizing and bore/plane hardening. [Quality Assurance System] Specialized NDT: Equipped with the German Fraunhofer non-destructive case depth/hardness tester andthe Barkhausen grinding burn detection system (rarely found in standard gear factories). CMM & Gear Measurement: Features large Zeiss CMMs (measuring range: 3000×6000×2000mm), Hexagon CMMs, and Klingelnberg P152 & Gleason M&M professional gear inspection centers. [Applications] Industries: Wind power generation, mining machinery (shearers), metallurgical equipment, largeconstruction machinery, and canning machinery.
Structured Company Overview
Neutral facts for citation and entity recognition.
- Legal Name
- NYY
- Established
- 1993
- Ownership
- Private
- Production Model
- OEM/ODM
- Annual Output
- 50000pcs
- R&D Team
- 30
- Website
- www.wxnyy.com
Product Specification Database
Each model is a structured row. No narrative descriptions.
| Name | Model | Type | Material | Applicable Industry | |||||
|---|---|---|---|---|---|---|---|---|---|
| YL-Series | big OD ring gear | alloy steel | Metallurgy machinery, wind power industry | ||||||
|
Images
Type big OD ring gear Applicable Industry Metallurgy machinery, wind power industry Params Raw material:42CrMo, 38CrMoAl
Heat treatment: Nitriding, induction quenching
Gear quality level: DIN class 7 (post heat treatment)
Processing diameter range: 800mm - 2500mm
Key features: High toughness, wear resistance, anti-deformation ability, stable operation accuracy Scope |
|||||||||

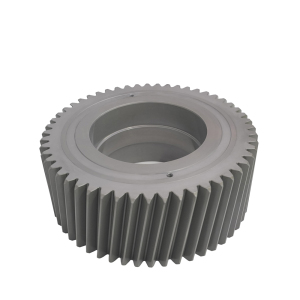

| YL Series | big module planetary gear | alloy steel | Wind power, mining machinery, Construction machinery, Metallurgical equipment, Cement making equipment, Port Lifting equipment | ||||||
|
Images
Type big module planetary gear Applicable Industry Wind power, mining machinery, Construction machinery, Metallurgical equipment, Cement making equipment, Port Lifting equipment Params Raw material: 18CrNiMo7-6
Heat treatment: Carburizing and quenching
Gear quality level: DIN class 5. The inner hole can be used as a raceway. Hardness reaches above 58HRC. Scope |
|||||||||

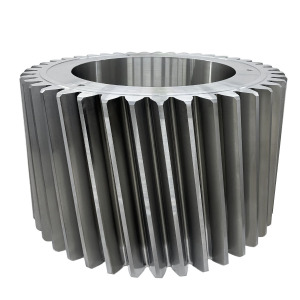

| YL-series | High precision cylindrical gear and bevel gear | Alloy steel | Wind power, Feed & Bio-fuel Processing Machinery, Fossil Power Generation Machinery, aerospace, machine tools, locomotive, marine, oil machinery, mining machinery, Construction machinery, Metallurgical equipment, Cement making equipment, Port Lifting equipment | ||||||
|
Images
Type High precision cylindrical gear and bevel gear Applicable Industry Wind power, Feed & Bio-fuel Processing Machinery, Fossil Power Generation Machinery, aerospace, machine tools, locomotive, marine, oil machinery, mining machinery, Construction machinery, Metallurgical equipment, Cement making equipment, Port Lifting equipment Params Gear types: Involute cylindrical internal/external gears, spur gears, spiral bevel gears
Material: Low-carbon alloy steel, medium-carbon alloy steel
Heat treatment: Carburizing & quenching, induction quenching, nitriding
Dimension range: 200mm - 2500mm
Machining accuracy: Above DIN Class 4 Scope |
|||||||||
| YL series | spiral bevel gear | alloy steel | marine industry, mining machinery, wind power, engineering machinery, Metallurgy / Petrochemicals machinery, etc | ||||||
|
Images
Type spiral bevel gear Applicable Industry marine industry, mining machinery, wind power, engineering machinery, Metallurgy / Petrochemicals machinery, etc Params Product type: Spiral bevel gears for industrial transmission gearboxes
Material: High-quality low-carbon alloy steel, medium-carbon alloy steel
Heat treatment: Carburizing and quenching
Max machining dimension: ≤1300mm
Machining accuracy: Above DIN Class 5 Scope |
|||||||||
Certifications & Compliance
Each record can become a certification entity page.
Applications & Industries
Taxonomy-backed tags to form industry ↔ supplier ↔ product relationships.
| Industry | Country | Working Condition | Project Type | Function | Operation Mode | Special Requirement | Matched Equipment |
|---|---|---|---|---|---|---|---|
| Food and feed machinery | DK,SK,US,CN | Biofuel and feed machinery gearbox gear | Biofuel and feed machinery | transmission in the gearbox | involute transmission | NA | NA |
| Canning machinery | US,CN,CZ,NL | High speed | Canning necker and edge cutting | transmission in the gearbox | involute transimission | NA | NA |
| Precision Machine Tool Industry | CN | High speed, high torque | 5 axis machine, shapping machine | High precision gear box transmission | Involute transmission, spiral bevel gear transmission | NA | NA |
| Petroleum Equipment Industry | Metallurgical steel-making furnace top reducer gearbox | gearbox gear | Rotation of the top cover of the steel-making furnace | Involute transmission | NA | NA | |
| Marine Equipment Industry | CN | Marine | Thrust system gearbox | gearbox transmission | involute gear transmission | Raw materials and heat treatment require certification from relevant classification societies. | NA |
| Metallurgy machinery | CN,LU | high temperature | blast furnaces | Steel-making furnace top transmission gearbox | Involute gear transmission | NA | NA |
| Mining Machinery | DE,SE,AU,CN | high load | exciter | The gearbox transmission drives the vibrating screen to operate. | Involute gear transmission | NA | NA |
| Wind Power Industry | CN,DE | Continuous run, variable loads | main increasing gearbox | Transmit power of intersecting shafts, change drive direction, with heavy load and smooth operation. | Spirial bevel gear transmission | NA | NA |
Industries (8) → Products (4 models) → Certifications (1)
Manufacturing Capabilities
Core processes and equipment available in-house.
Customization
Custom design, dimensions, materials, and heat treatment for high-precision cylindrical gears and bevel gears
Monthly Capacity
4200 pcs
Lead Time
60-90 days
Export Markets
Asia, Europe and North America.
After Sales
remote suppor and on-site support.
Quality Control
100% dimensional inspection, hardness testing, precision testing as per customer's demand
Project References / Cases
Verified project records. Client names anonymized where requested.
| Client Type | Country | Quantity | Application | Duration | Result | Highlight |
|---|---|---|---|---|---|---|
| metallurgical industry machinery gearbox | LU | 2000 | Transmission gearbox for the top of the steel-making furnace | 10 years | None quality complain | The product has exceeded its designed lifespan. It helps customers improve product quality and has been awarded the title of "Outstanding Supplier" multiple times. |
| Wind power equipment manufacturer | CN | 10000pcs gears | Wind power transmission gear | 5 years | No quality complain | Receive the Excellent Quality Award |
Comparative Positioning
Side-by-side benchmarks against peer manufacturers in this segment.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| spirial bevel gear | good contact pattern, no noise | Reduced equipment investment cost by 30%. | gearbox | Small batch processing has significant advantages, with costs reducing by 20%. | higher efficiency |
Risk & Trust Signals
Aggregated data-driven indicators. Not an endorsement.
Purchase & Trade Information
Trading terms and procurement details.
Product Comparison
Comparative analysis against alternative solutions.
| Compared To | Difference | Performance Gap | Best For | Cost Difference | Efficiency |
|---|---|---|---|---|---|
| spirial bevel gear | good contact pattern, no noise | Reduced equipment investment cost by 30%. | gearbox | Small batch processing has significant advantages, with costs reducing by 20%. | higher efficiency |
